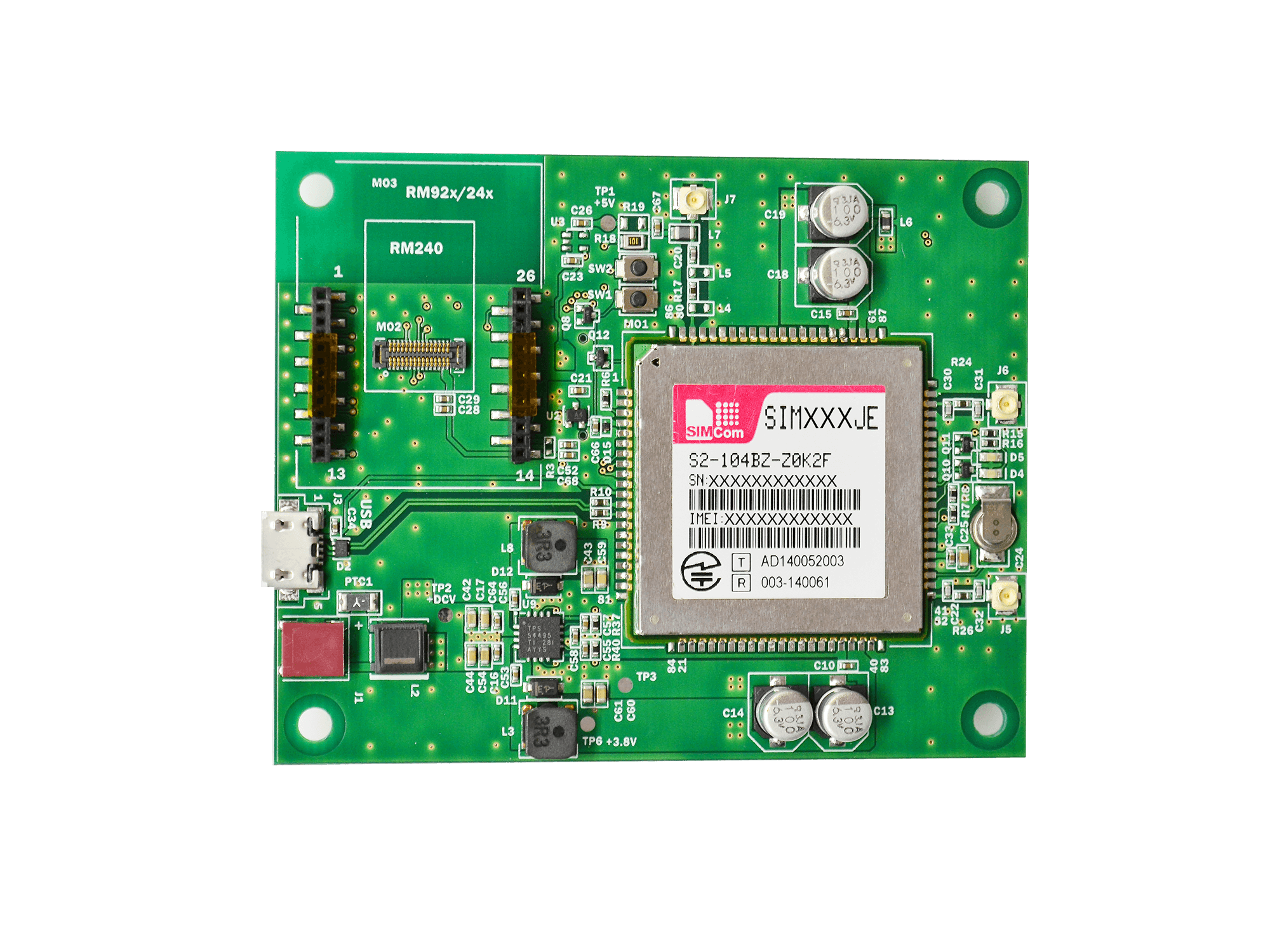

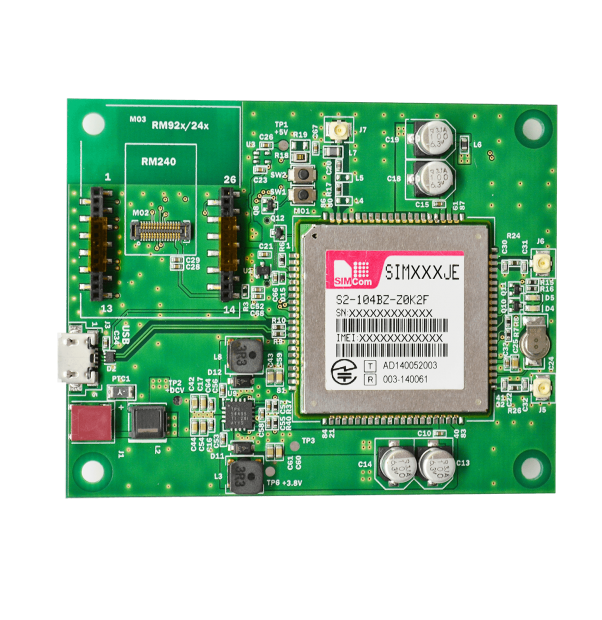

3G/LTE Gateway with 920MHz/2.4GHz RF Module sockets GH-GWS-***R Series
This product is certified for radio transmission in Japan only.
For usage outside Japan, frequency customization and certification may be required.
Please contact us for the details.
International Certification Criteria: GREEN HOUSE has various international certification standards: “ISO 14001”, “ISO 27001”, and “ISO 9001”.
We deliver safe and high quality products.
Specifications
Specifications
| Cellular connectivity | 3G (SIMCOM5320) 3G (SIMCOM5360) 3G/LTE (SIMCOM7100) |
|---|---|
| Supported Network providers | Docomo/Softbank/KDDI |
| Supported RF modules | 920MHz (RM-922/RM-92A) 2.4GHz (RM-240/RM-241/RM-241S) |
| Interface | UART/SPI/I2C/USB/GPS |
| Card slots | Regular SIM card Micro SD card |
| Power Supply | AC Adapter USB Dry-cell batteries (4 Alkaline/NiH batteries) |
